MoTec C127/187 Dash Cluster Mounts
Precision-fit mounts for 100+ vehicle models.
SUMMARY

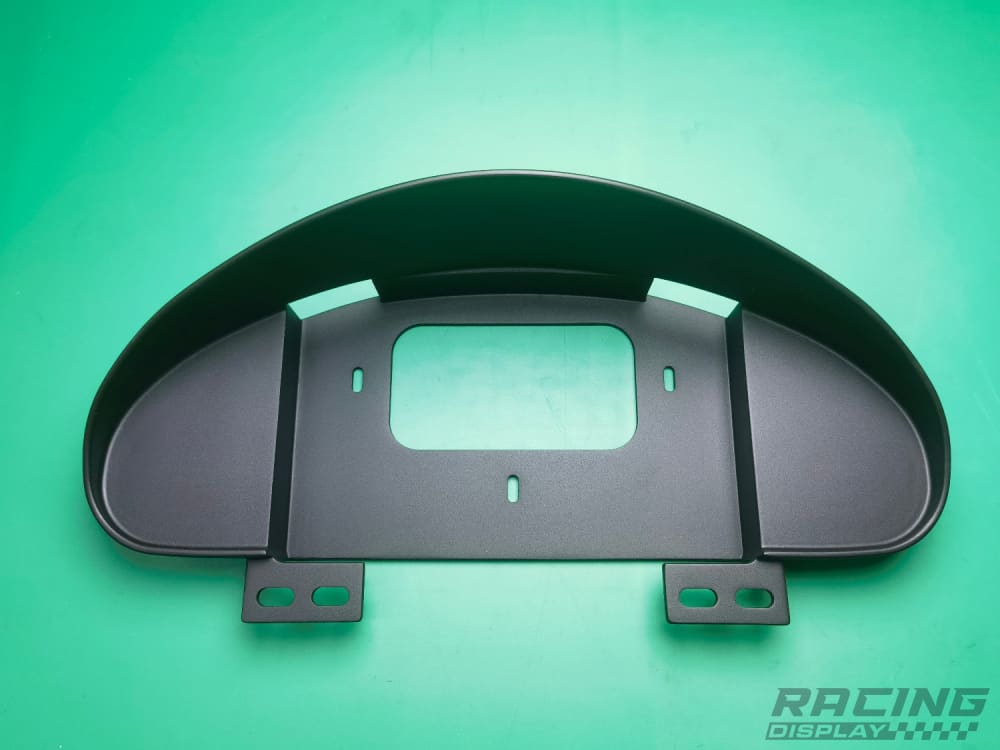

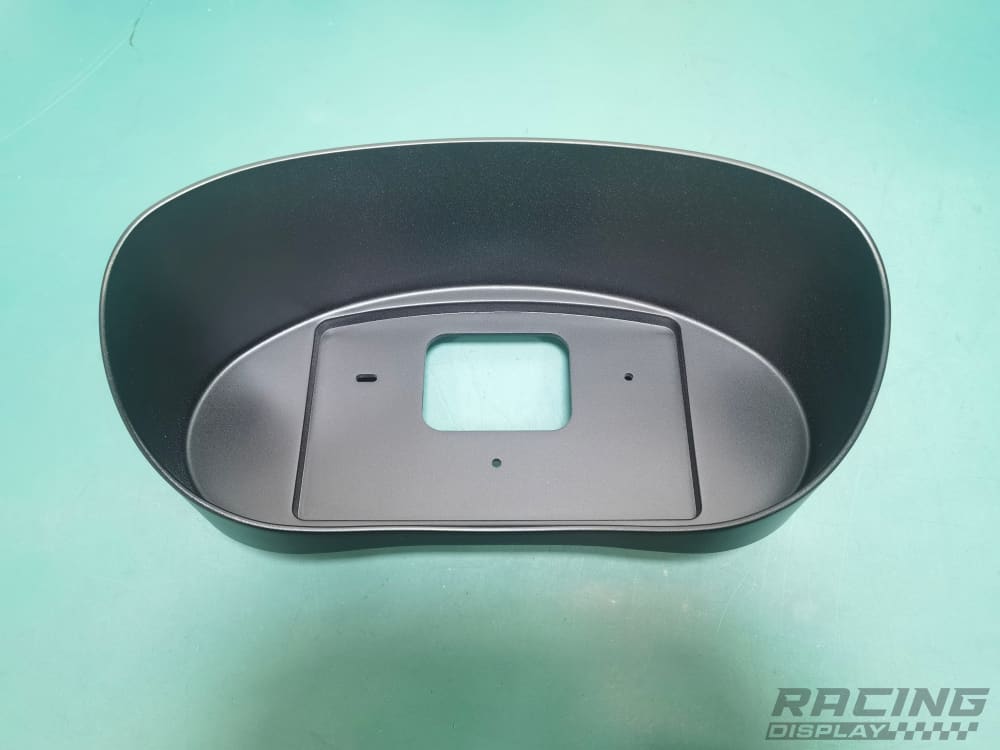

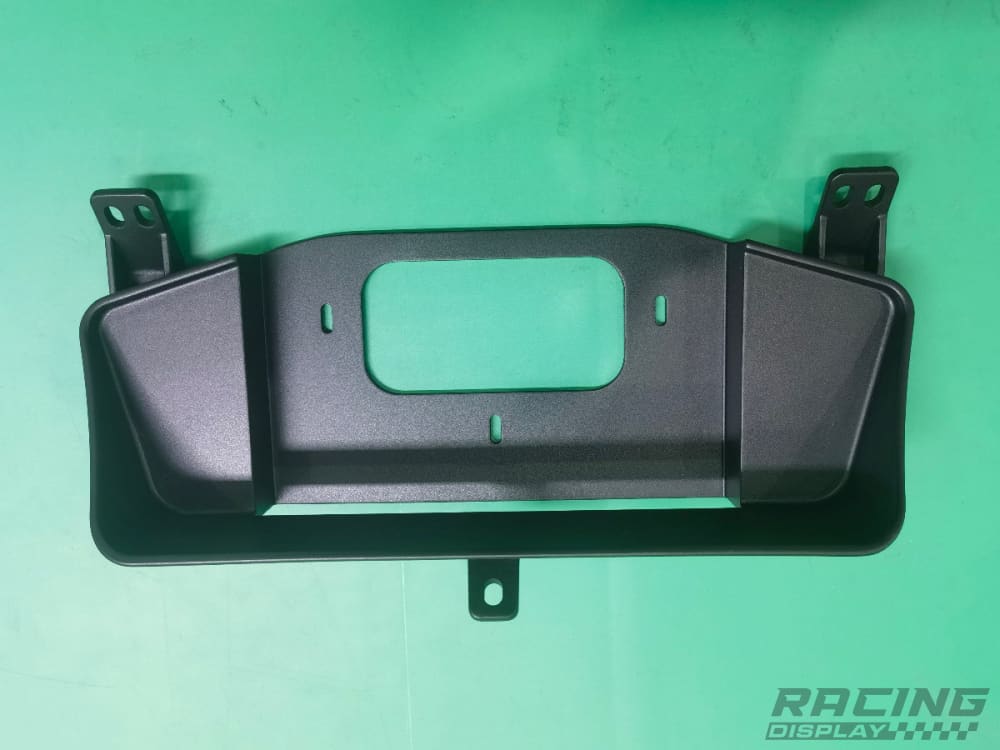

The Racing Display bolt-in mount replaces your factory instrument cluster, allowing you to install the MoTec C127/187 digital dash with a clean, factory-quality fit.
Installation is straightforward: remove the original cluster, secure the mount using the factory mounting points, and refit the surrounding trim. No cutting or modification — just a seamless upgrade that looks like it belongs.
Each mount is engineered to suit all variants of the listed vehicle model and is compatible with both LHD and RHD configurations, unless a specific model requires separate LHD/RHD versions (which will be clearly noted).

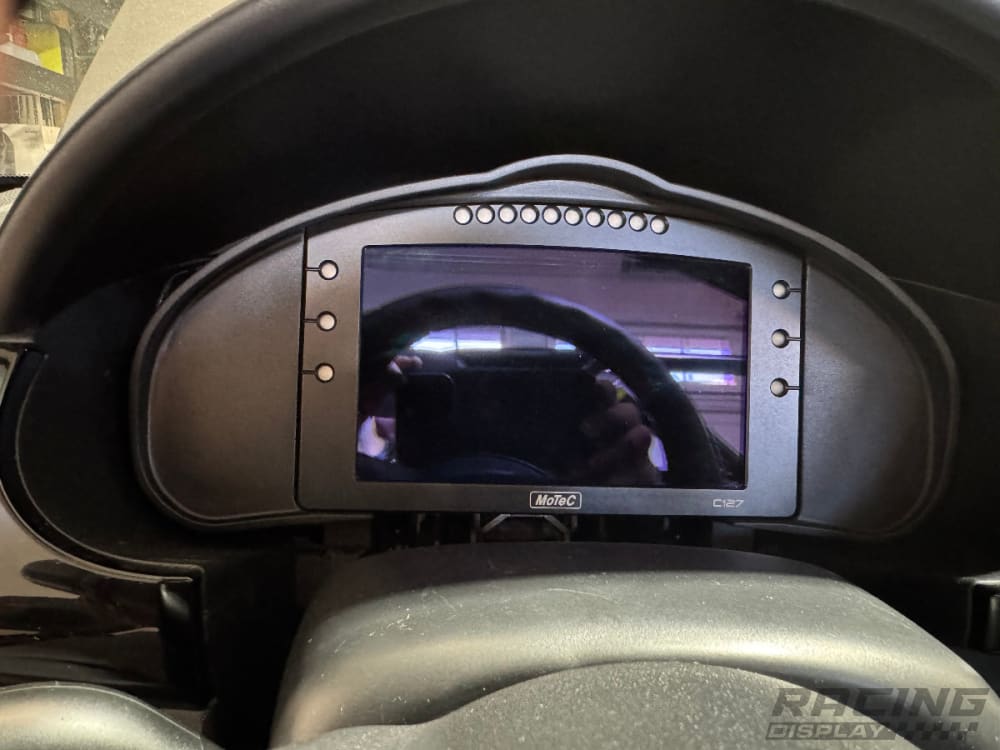

The display sits in a recessed pocket for a flush, factory-style finish.
-
Durable construction – Manufactured from heat-resistant, automotive-grade polymers
-
Professional finish – Smoothed and painted matte black for an OEM-style appearance
-
Custom options – Can be modified to accommodate additional gauges or lights
-
Easy installation – Straightforward bolt-in fit using factory mounting points
Popular Platforms Supported:
- Nissan: Skyline / GT-R (R32, R33, R34), Silvia / 180SX / 200SX / 240SX (S13, S14, S15), 350Z, 370Z
- Toyota: MR2 (SW20), Supra (A70, JZA80), Chaser (JZX90, JZX100), Aristo (JZS147, JZS161), 86
- Mazda: RX-7, RX-8
- BMW: E30, E36
- Mitsubishi: Lancer Evo (7/8/9, 10)
- Subaru: WRX / STI (GR/GV, GD/GG, VA, GC8), Forester (SG9, SH)
-
Honda: Civic (EG, EK), Type R (EP3, DC2)
- Lexus: GS300 (JZS147, JZS161), XE10, Z30
- Ford: Mustang S550, Falcon
- Holden: Commodore
- Chevrolet: Camaro
- Mercedes: 190, W204/C204
Don’t see your chassis listed here? Use the dropdown selector above to find your specific model, or contact us to request a new platform.
About the MoTeC C127 & C187
The MoTeC C127 and C187 are professional-grade 7-inch colour TFT display loggers built for serious motorsport applications. Both feature an anti-reflective, high-contrast screen with 800 x 480 resolution that remains clear and vibrant in direct sunlight, housed in an IP67-rated enclosure with full dust and waterproof protection.
Each unit functions as a combined display, data logger, and control device — logging at up to 1,000 samples per second with 250MB of internal memory, expandable via optional USB logging to 500MB. Sixteen fully programmable RGB LEDs provide configurable shift lights and warning indicators. The C187 adds 3 composite video inputs for live on-screen camera feeds, 4 configurable CAN buses, GPS lap timing, and compatibility with MoTeC expanders including the E816 and E888 for full I/O expansion. Both units integrate natively with all current MoTeC ECUs and a wide range of non-MoTeC devices via CAN or RS232.
Racing Display manufactures vehicle-specific bolt-in mounts engineered to fit the MoTeC C127 and C187 precisely into your factory dash opening. No cutting, no fabrication — just a clean, factory-style finish that looks like it belongs. Note: the MoTeC C127/C187 display is sold separately and not included with the mount.
