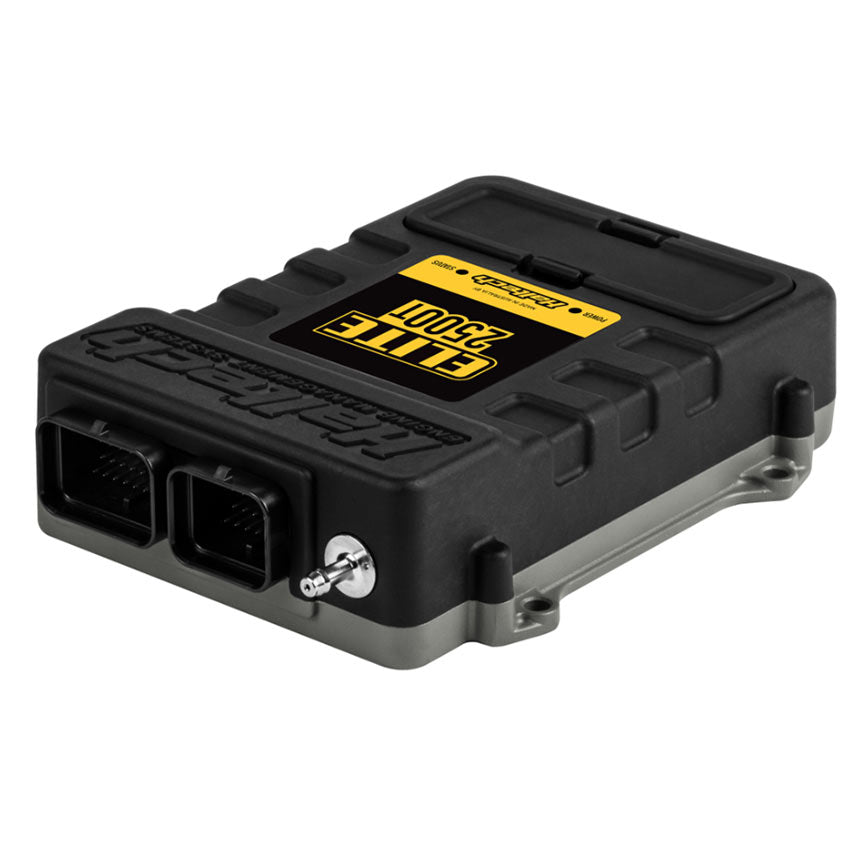

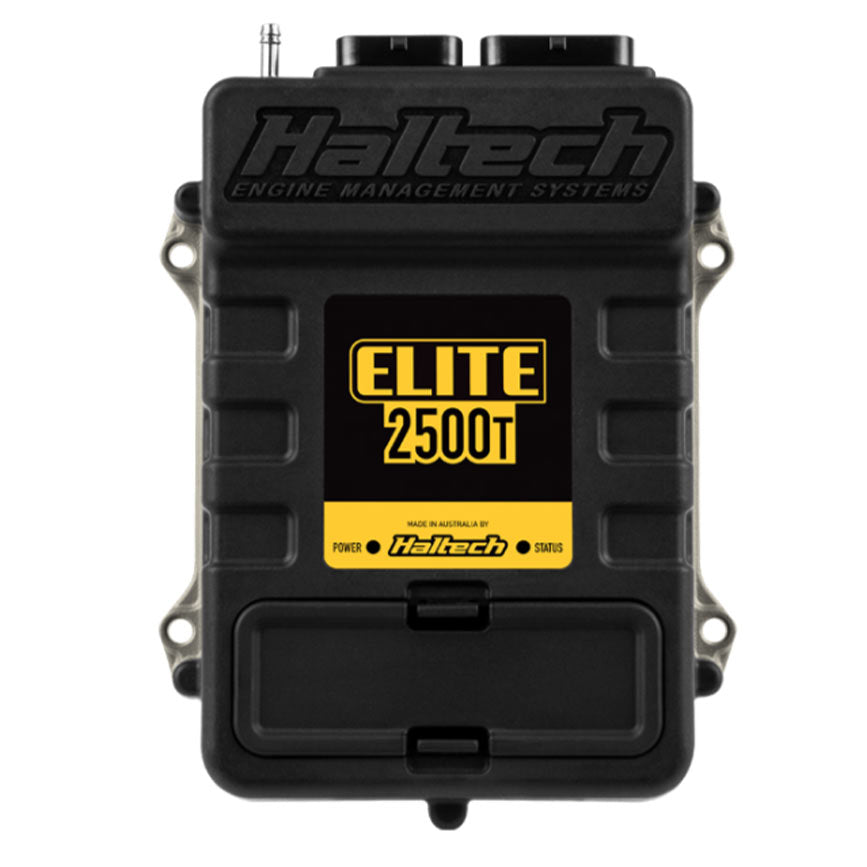

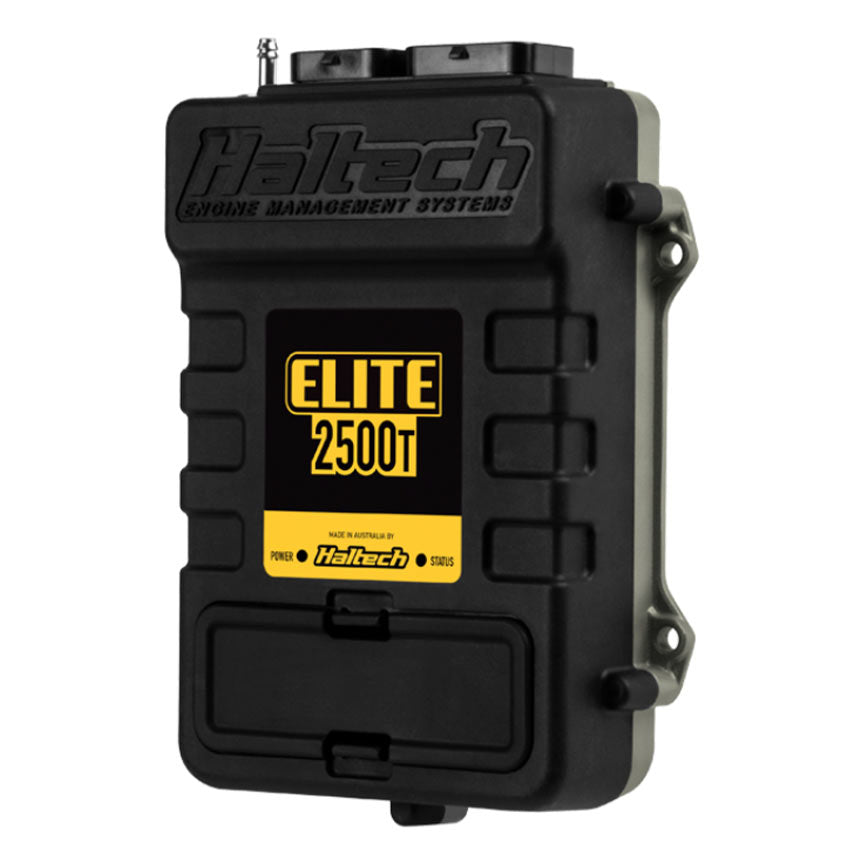

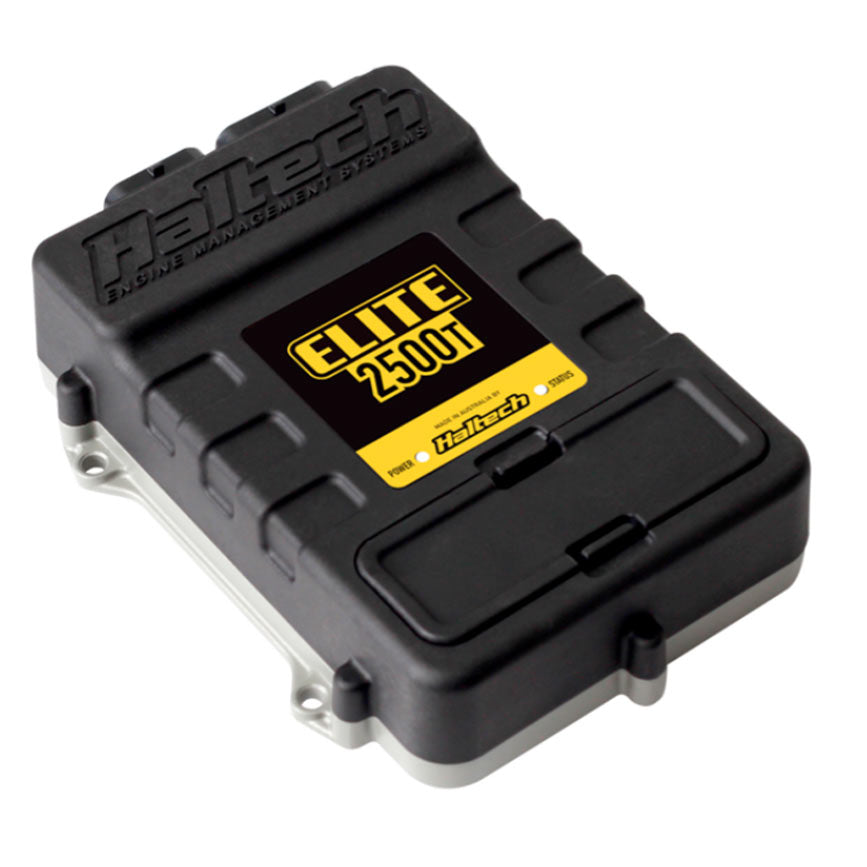

Haltech Elite 2500T ECU
$3,429
Skip to product information
Safe & Secure Online Shopping
SUMMARY
Haltech's Elite 2500 T takes the art of engine calibration to a whole new level. Featuring a robust environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, dual channel knock control, and much more, the Elite 2500 T provides engine calibrators the tools they need to get the job done right. Alongside this ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.
Outputs: Up to 8 injector and 8 ignition.
SPECIFICATIONS
- Supports 1 to 12 Cylinder engines
- 2 to 4 Rotor engines
- Normally aspirated or forced induction
- Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
- Staged, Sequential, semi sequential, batch or multipoint injection patterns
- Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
- Connect to a wide range of display dashes and expansion devices via CAN.
- Waterproof Case (With Pocket Cover Fitted)
- 8 x Fuel Injection Outputs
- 8 x Ignition Outputs
- 12 x Digital Outputs
- 10 x Analogue Voltage Inputs
- 4 x Synchronised Pulsed Inputs
- 4 x Dedicated inputs (Dual Knock, ignition Switch & onboard MAP Sensor)
- 2 x Dedicated Engine Position Inputs with extensive trigger type support
- Up to 45 channels of Input & Output (I/O) expansion (via CAN)
- USB Laptop communication (Windows)
- ESP Calibration Software - Intuitive and easy to use
INCLUDED
COMPATIBILITY
SHIPPING
We offer free standard shipping on all orders, with optional express shipping available at competitive rates.
Estimated delivery times (contiguous USA):
- USPS Ground Advantage: 3–7 business days
- UPS Ground: 2–3 business days
For international orders, we use DDP (Delivered Duty Paid) shipping — duties and tariffs are included in the price, so there are no surprise charges on arrival.
You’ll receive a confirmation email as soon as your order is placed, followed by tracking details once your order ships.
If you have any questions, please don’t hesitate to reach out—we’re here to help.
WARRANTY
Duration:
All Racing Display ECUs are covered by a 12-month warranty, valid from the date of purchase.
Coverage:
We are committed to providing high-quality products. Within the 12-month warranty period, we will, at our discretion, either repair or replace any Racing Display product that proves to be defective in workmanship under normal use and service conditions.
Exclusions:
Our warranty does not cover failures or damage resulting from the following:
- Normal wear and tear
- Damage to paint or exterior finish
- Labor costs associated with diagnosing defects, product removal, or reinstallation
- Any other contingent expenses
- Misuse, abuse, or negligence
- Incorrect installation or application
- Unauthorized modification
Transferability:
Please note that this warranty is limited to the original consumer purchaser and is not transferable to subsequent owners of the product.
Warranty Claims:
If you encounter any issues covered by this warranty, please contact us at info@racingdisplay.com. When filing a warranty claim, provide your name, order number, contact details, and a detailed description of the problem, including photographic images if possible.
Order Errors:
In the event that you receive the wrong product, we will promptly process an exchange for the correct ordered item(s), subject to availability, or arrange a refund. To resolve order errors, please email info@racingdisplay.com with your name, order number, contact details, and a detailed description of the error. We will assess your request as quickly as possible to ensure your satisfaction.
RETURNS
Buy with Confidence — We Back Our Gear
We accept returns if they are initiated within 30 days of delivery.
Faulty or Incorrect Items:
If your gear arrives faulty or is the wrong part, we will cover return shipping and provide a full refund or replacement based on your preference.
Change of Mind:
If you simply change your mind, we accept returns provided the item is unused, uninstalled, and in its original packaging. The customer is responsible for return shipping costs and a 15% restocking fee will be deducted from the refund. (This fee covers non-refundable merchant transaction fees, inspection labour, and re-packaging costs.)
If you would like to request a return, please contact us at: info@racingdisplay.com and we will provide instructions.
